CARBON

Carbon, the essential element of all life on Earth, now an essential part of CNC manufacturing.

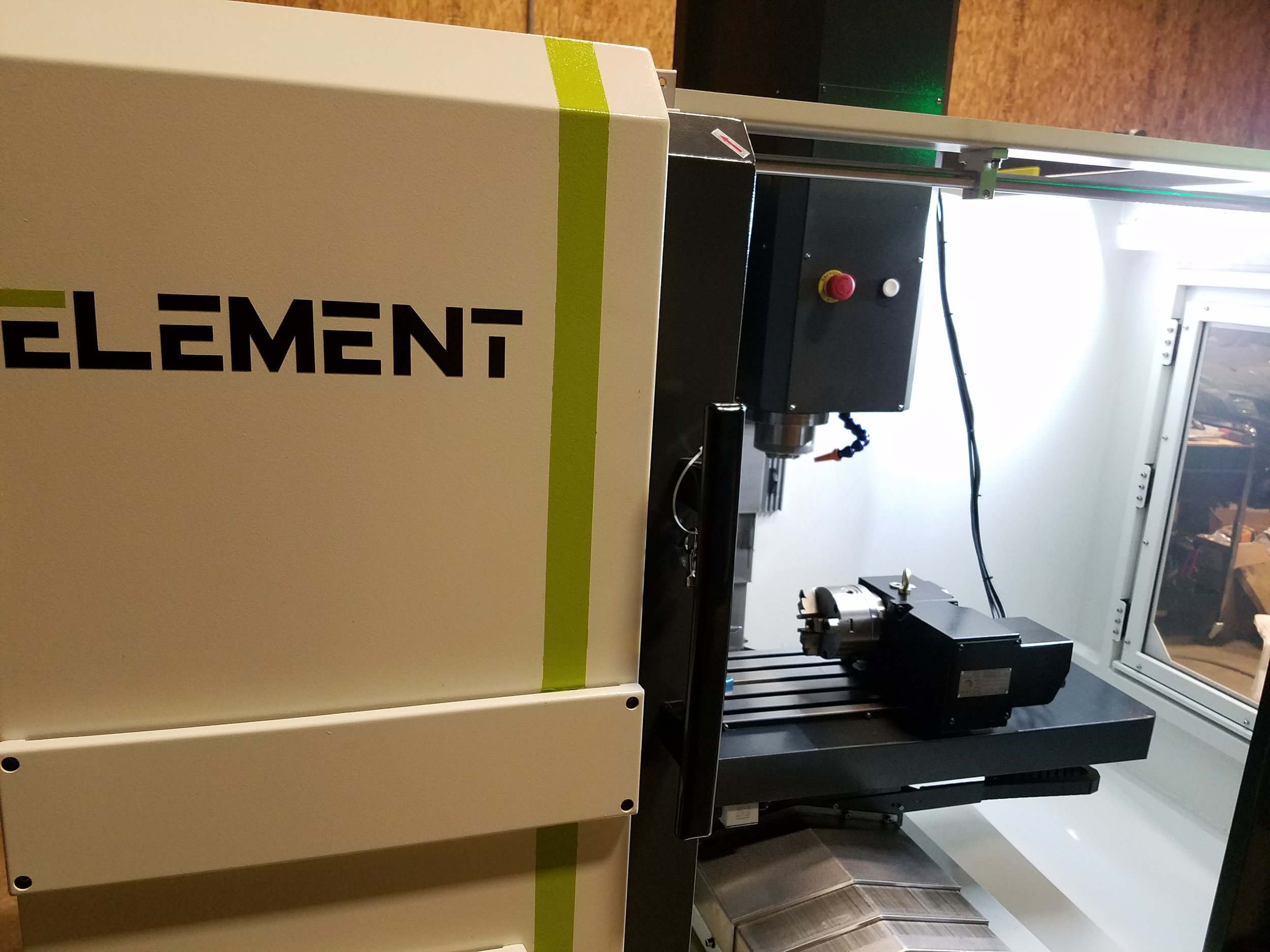

Torrent 80-1.jpg

Fully Equipped

Carbon is a fully featured control, no options here. Every control is equipped with 64 Gb of storage space, 4 Gb of RAM, WiFi, Ethernet, USB ports, macro B programming, 254 tool offsets, 126 work offsets, helical interpolation, drilling canned cycles, scaling and mirroring, advanced trajectory planning, cutting edge dual mode cutter compensation, and more. New features are constantly being developed, and every control comes with updates forever; if we add a new feature, all controls can be updated with a simple install.

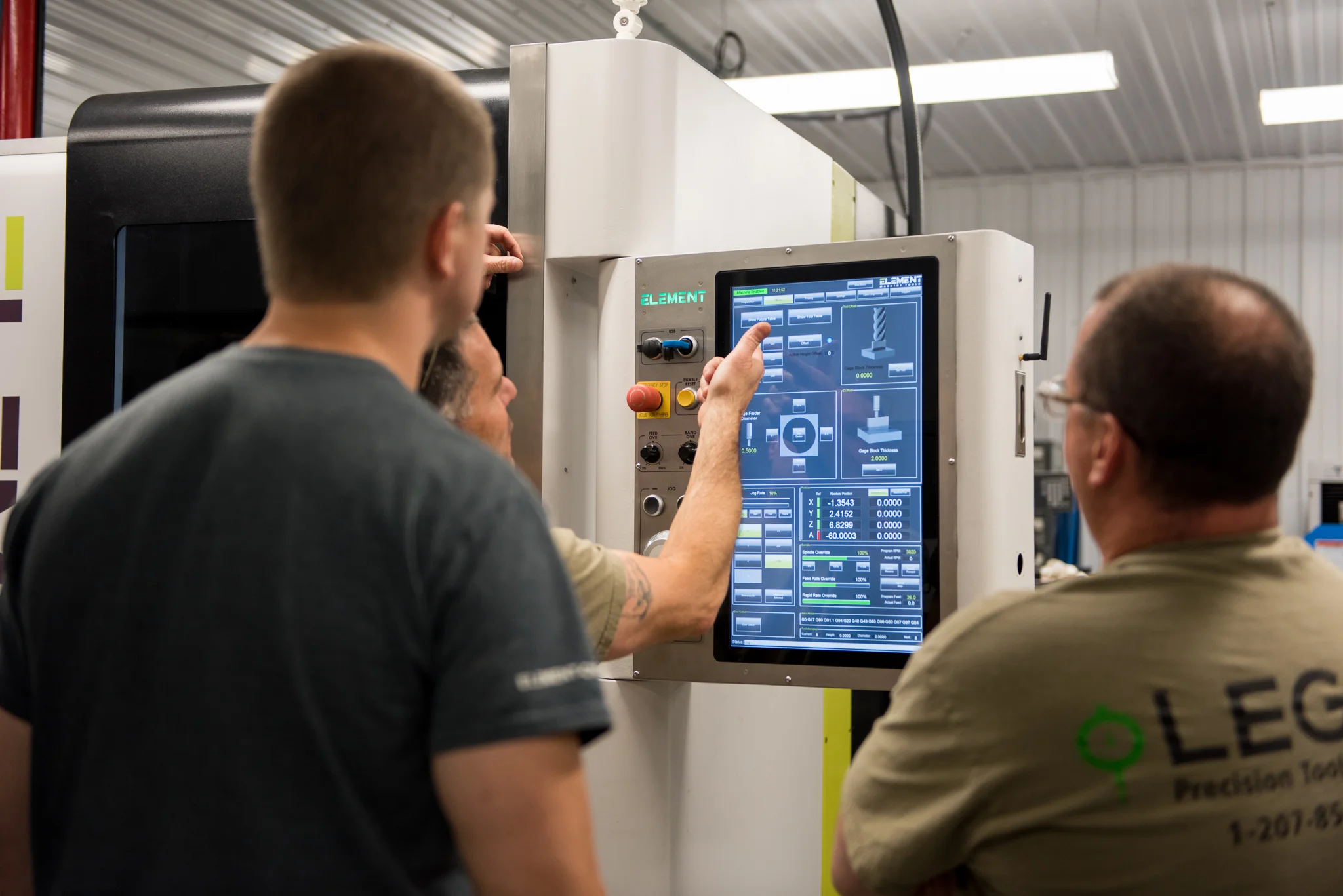

Intuitive

Above all else Carbon is designed to be intuitive and user friendly. Machinists, operators, students, set up personel and more were all involved in the development. This resulted in a very approachable control that is powerful enough for even the most complex programs.






Powerful and Flexible

Multiple axes, Caron Engineering software integration, bar code scanners, cameras, probing systems, ERP/MRP software integration, serial numbers and more. Carbon is equipped to handle the most complex code and integrate with a wide variety of 3rd party applications and devices. Custom screens can be created to meet your specialized needs.



Features and Specifications

  • Fanless industrial NUC

    • Windows Embedded

    • Core i3 processor

    • 4 Gb RAM

    • 64 Gb SSD

    • Built in WiFi

  • Large 22.5 inch PCAP touch screen

  • USB ports for program input and accessories

  • Mach4 Industrial CNC control software

    • Carbon customized GUI

    • Advanced Trajectory Planning

    • 6 axis simultaneous motion

    • Multi-planner capable, up to 6 instances

    • Dynamic tool path display

    • Remote interface

    • Backlash and screw mapping control

    • Two mode cutter compensation

    • 126 fixture offsets

    • 254 tool offsets

    • Coordinate rotation and scaling

    • Mirroring function

    • High speed machining

    • Synchronized tapping

    • Mill and lathe programming wizards

  • Robot integration

  • Custom GUI for specific applications

  • Automation integration

  • Spindle orientation and positioning

  • Programmable status light

  • Mill/Lathe/Combo
